Het Alpine Infotainment Navigtie-systeem biedt Skoda Octavia 3 (5E) eigenaren zeer geavenceerde navigatie technologie, de laatste snufjes multi-media gebied en sublieme geluids-kwaliteit in uw auto. Alle componenten zijn toegespitst op een zeer gemakkelijke installatie in uw Skoda Octavia 3 (5E). Perfecte intergratie zonder compromis.

Passend op de volgende modellen:

• Skoda Octavia 3 (5E) vanaf 01/2012

Niet passend incombinatie met:

• Met Canton Sound System.
• Facelift model

Inbouw-materiaal:

• Montage beugel
• Kabelboom en CAN bus interface voor volledige installatie.

De onderstaande GPS antenne is nog extra nodig.

Beschrijving in het ENGELS:

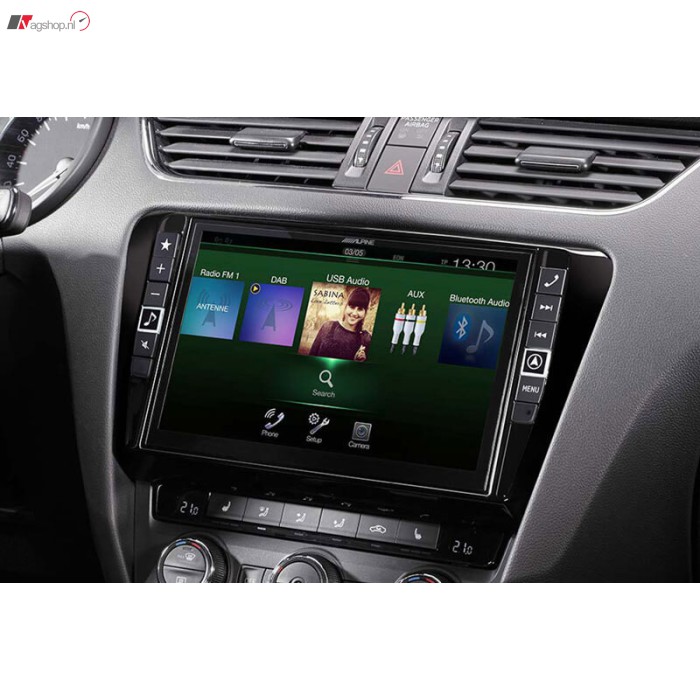

High-resolution 23 cm touchscreen display
This Alpine system has a high-resolution 23 cm (9-inch) touch screen - the largest screen currently on a Volkswagen Skoda Octavia 3 (5E) dashboard. It is actually more than twice as large as the standard 16.5 cm Golf VII display. It is actually more than 80 % larger than the standard 7-inch display of the ŠKODA Bolero radio which is installed in most of Octavia vehicles. This extra large screen glows with brilliant colors and high-resolution images in a quality that you have to experience.

Operation with multifunction steering wheel
This navigation system designed by Alpine communicates perfectly with the multifunction steering wheel of your vehicle. The upgrade to this system therefore works without loss of functionality and you can control volume, phone, title search forward / backward functions and other as usual. And if a smartphone is connected to the system, you can even activate the voice control via the steering wheel.

Parking assistant
If your car is equipped with original parking sensors, also this functionality is preserved when upgrading to the Alpine system. The parking sensor system is connected to the Alpine display to represent clear obstacles when parking the vehicle. At the same time the system automatically mutes the music, so that the acoustic parking sensors remain audible.

Rear view camera
If your Skoda Octavia 3 (5E) is equipped with the original rear view camera, you can use an adapter accessory (RGB camera adapter) to connect the camera to the navigation system. The camera is automatically activated and shown on the display when reverse gear.

Vehicle information
The navigation system is compatible with the electronics of Octavia 3 (5E) Vehicle information like for example oil-Chill and boost pressure are displayed on the 9-inch display.

Alpine Connect
The navigation system is Alpine Connect compatible, so that Android smartphone users can use Spotify, Yelp and Glympse on the Alpine 9-inch display. Additional apps and an iOS compatible version will be available later on.

Bluetooth technology
Thanks to the built-in Bluetooth compatibility, it is possible to establish a wireless connection to a Bluetooth-enabled phone for hands-free calling. It supports most Bluetooth enabled mobile phones and allows you access easily to your phonebook with automatic updates and faster alphabetical search. A very intuitive interface makes the controlling very easy. Of course, you can stream music from your mobile phone and browse more easily through your archives due to the compatibility with the AVRCP version 1.5.

DAB+ Digital Radio
Radio receiver with superior digital sound quality - this is how the integrated 1.5-fold DAB+ tuner with superior reception technology is like. It always provides an extremely accurate, transparent sound. For uninterrupted reception tuner DAB+ to DAB+ service Following. DAB+ offers many more advantages than conventional FM radio: Select your transmitter from a much wider range of radio stations or search for your favorite station from an alphabetical list or genre list.

Professional sound tuning
The navigation system offers many options for sound tuning, so that you give the sound in your Skoda Octavia 3 (5E) a personal touch and get the best out of the Golf-sound system. The integrated dual parametric 9-band equalizer allows a separate professional tuning of the front and rear channels. The connection to the original Dynaudio sound system in the Skoda Octavia 3 (5E) is also supported by using the Alpine accessories Adapter KWE-BO1AU.

• Equalizer presets: 10 equalizer presets allow rapid adaptation of sound to different sound modes such as Rock, Pop and Jazz.
• Fader and balance: To fader and balance settings, drag the crosshair on the touchscreen display simply to the desired point of the vehicle interior shown.
• Crossover: With the digital crossover you can define cut-off frequencies for your speakers. This ensures that the loudspeaker signals for each area are reproduced without distortion.
• Digital Time Alignment: With the Time Alignment you can virtually compare the distances of each speaker by delaying the signals. This gives the impression of a central listening position.

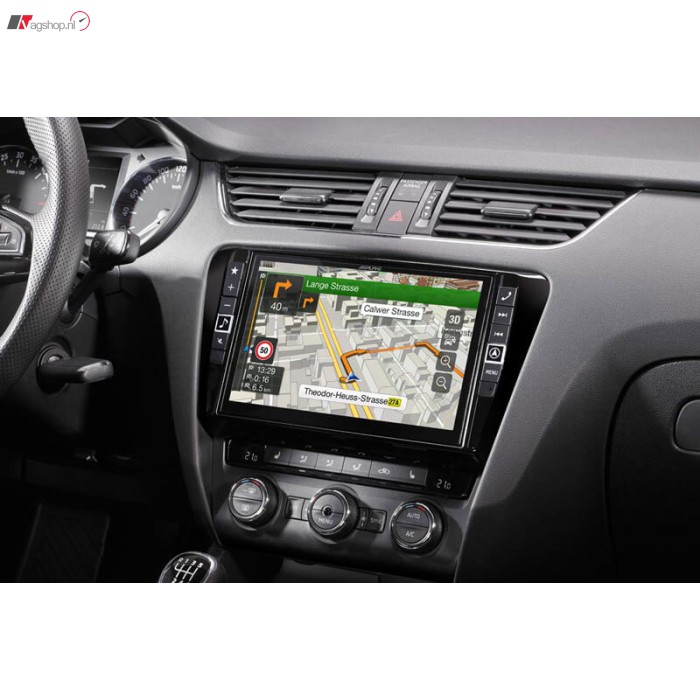

Navigation:

• High-resolution touch screen display & maps
  Use the virtual keyboard to destination addresses and all necessary navigation settings can be entered. You can enter postal codes for all European countries, making the search for addresses accelerated. The system even responds to incomplete addresses, and you can choose from 33 different keyboards for your language.


• 3D map
  Consider maps in 3D view and shown in detail buildings and sights. This feature helps you find your way in large cities. The display of speed limits and speed camera warnings (optional) are additional driver assistance functions.


• TMC route guidance
  Thanks to TMC traffic information is updated live. To help you plan your route before starting the journey. Use the route summary screen gives an overview of the entire route and can avoid traffic jams and problems easily. Accidents, traffic congestion and other problems appear with warning symbols on the map, while roads are represented with viscous or stationary traffic in different colors.


• Lane assistant
  The lane assistant shows the driver the right lane and facilitates early filing in each lane.


• One Look Display
  The innovative, split display can show the driver the navigation map and play at the same e. g. video or music content on the other side. This gives easy access to all information at a glance. Especially handy this feature is e. g. on long car rides.


• POIs (Points of Interest)
  You can search by category, the name, distance and other criteria for POIs. This is useful if you want to search for a specific restaurant or a gas station of a particular brand. Restaurant information include not only the address and the culinary direction, the phone number, which you can tap on the screen easy to precaution to reserve a table.


• Arrow navigation display in the multifunction display (MFD)
  Display of navigation arrows in the multifunction display.


• Extensive map database
  selectable from 48 European countries, 29 different GUIs and voice guidance


• Map updates
  can be purchased anytime online at alpine.naviextras.com. Free map update within 30 days after the first GPS fix from the navigation system. Updates can be purchased specifically by country and region. This saves money by bringing the update.


• Smart routes:
  The system stores past traffic situations and uses this information to determine the best route depending on the time and day.

Equipment:

Tuner

• station memory: FM: 24 / MW: 6 / LW: 6
• memory: Auto Memory Entry
• search function: Manual / Local / DX Selection
• station name display
• RDS function: AF, TA, TP, PTY, PI, NEWS, RADIO TEXT

DAB+ tuner

• integrated DAB+ tuner
• DAB+ / DMB support
• SLS (Slideshow Service)
• DLS (Dynamic Label Service)
• DAB+ to DAB+ service Following
• FM-Linking (automatic DAB+ / FM switch (when signal available))
• channel memory: 18 Station presets
• auto Ensemble / Service Storage
• alphabetical transmitter search
• service search
• PTY search
• phantom power for DAB antenna selectable (on / off)

BLUETOOTH®

• integrated BLUETOOTH® module
• wideband speech technology
• speakerphone: HFP (Hands Free Profile) compatible
• music Streaming: A2DP (Advanced Audio Distribution Profile) compatible
• music Streaming control: AVRCP (Audio / Video Remote Control Profile) Version 1.5 compatible
• advanced BLUETOOTH® technology
• connection: SSP (Secure Simple Pairing) support
• custom Profile link: speakerphone and music streaming
• phonebook: Automatic phonebook transfer
• one-touch keys: 4 presets per phone
• application of different phones: 5 different phones can be registered
• multiple numbers: up to 5 phone numbers per contact can be displayed
• device name Display
• automatic answer
• call list: dialed / received calls / missed calls
• redial function
• voice volume adjustment: Adjustable for incoming and outgoing calls
• DTMF tone function
• display the GSM signal strength
• displays the battery charge
• menu language: 24 menu languages
• firmware can be upgraded

Navigation functions

• maps: 48 countries (Western and Eastern Europe)
• menu languages: 29 languages
• voice guidance in 29 languages, 15 languages ​​for text-to-speech (TTS)
• advanced address search
• postcode search
• free Search
• search word pieces
• advanced POI Functions
• smart routes: use of historical traffic data
• fast route calculation
• extended route planning
• ECO routing
• 7 alternative routes to choose from
• extended TMC mode
• map display: 2D top view, 2D North, 3D
• 3D city maps: 3D building views
• display of height profiles
• 3D Motorway interchanges: 3D display of motorway junctions
• lane Guidance
• tunnel mode
• motorway mode
• navi mix mode
• text-to-speech
• direct dial telephone from POI data
• hybrid GPS sensor: GPS, gyro sensor, vehicle speed pulse

Sound tuning

• BASS ENGINE ™ Pro
• BASS ENGINE ™ SQ
• subwoofer Level adjustable
• subwoofer phase selectable
• 4 V preamp (connecting cable optional)
• equalizer: Flat, pop, rock, news, jazz, Electrical Dance, Hip Hop, Easy Listening, Country, Classical
• dual HD EQ (9-band Parametric EQ (front / back separately))
• 6 Channel Time Correction
• digital crossover
• customizable sound settings by vehicle
• MediaXpander HD
• source volume adaptable
• download online sound settings
• easy, step-by-step sound adjustment
• "Alpine TuneIt app" -Ready

General

• output power: Max. Power 4x 50 W High Power Amplifier
• integrated premium quality amplifier for excellent sound
• display: 23 cm (9-inch) capacitive WVGA High Resolution Display
• white LED backlight
• 50/50 Split Screen: Left / Right position changeable
• touchscreen with Slide Function / drawing and scrolling
• customizable favorites screen
• 2 user profiles can be created
• value Audiophiles Design
• preamp: 3 PreOuts (4 V, front / rear / subwoofer) (connecting cable optional)
• AUX-In: 1x A / V input (3.5 mm jack)
• steering Wheel Remote Control
• preparing for infrared remote control
• navigation mix announcement
• prepared Camera Connection for original Golf VII camera
• reversing camera with instant-start function (Immediate display of the reversing camera at startup)
• simple Mode & Info Mode Display
• visual EQ
• live Contrast adjustment
• menu Language: 24 languages ​​(for AV & Bluetooth), 29 languages ​​(navigation menu and voice prompts)
• time of day
• auto dimmer
• anti-theft combination code
• firmware updateable
• connection for original Golf VII-free microphone
• connection for motor antenna
• remote turn-On
• HDMI input & output (Special Alpine HDMI connection cable required)
• HDMI extension box ready
• Start-Stop Ready
• CAN-BUS connection port (UART - for SWRC, Sub-display & comfort indicator)
• compatible with iPod / iPhone:
